WEP-632-ZigBee

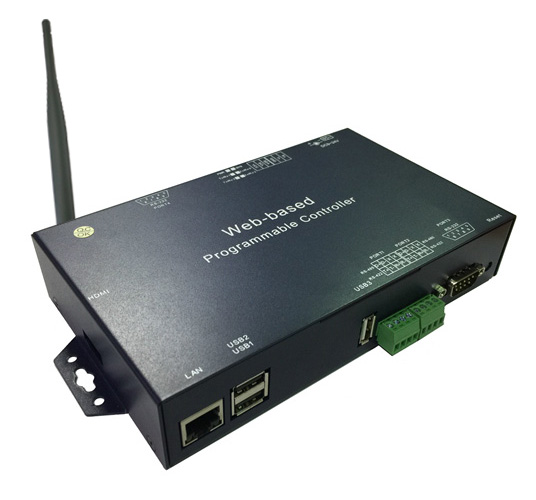

2019.8.152019.8.15 最新發表最新發表 Built-in-Zigbee Module Web-based Programmable ControllerBuilt-in-Zigbee Module Web-based Programmable Controller

Features

  • Built-in-Linux OS
  • RS485/232 To TCP/UDP Converter
  • Built-in-Zigbee Module (IEEE 802.15.4)

Hardware

  • CPU : ARM Cortex-A53, 4 Cores , 1200 MHz
  • RAM : 1G Bytes LPDDR2
  • ROM : 16 G Bytes Flash ROM ( Micro SD card )
  • OS : Linux OS
  • Programmable: Accept C, Java, Python Language

Ethernet

  • Port Type : RJ-45 Connector * 1/2(Option)
  • Speed : 10 /100 M bps ( Auto Detecting )
  • Protocol : ARP , IP , ICMP , UDP , TCP , HTTP , DHCP
  • Protocol :PPPoE , DDNS , NTP , FTP , Telnet
  • Mode : TCP Server / TCP Client / UDP
  • Security : Setup Password
  • Protection : Built-in 1.5KV Magnetic Isolation

Serial Port

  • Port : RS - 232 * 1 Ports ( full function *1)
  • Port : RS - 422 / 485 * 2 Ports ( Surge Protect )
  • Speed:300 bps ~ 230.4 K bps
  • Parity:None , Odd , Even , Mark , Space
  • Data Bit:5 , 6 , 7 , 8
  • Stop Bit : 1 , 2
  • RS-232 : Rx , Tx , GND , RTS , CTS , DTR , DSR , DCD
  • RS-422 : Rx+ , Rx- , Tx+ , Tx- ( Surge Protect )
  • RS-485 : Data+ , Data- ( Surge Protect )

Others

  • Power: DC 9~32 V , 2000 mA
  • LED Lamp: SYS ( PWR ), LAN, LED 1, LED 2 ( User Define )
  • Environment: Operating Temperature:0 ~ +70℃
  • Storage Temperature:-10 ~ +80℃
  • Dimensions:180 * 110 * 30 mm ( W * D * H )
  • Weight:450 g
  • Regulatory Approvals: CE / FCC
  • Warranty: 1 year
