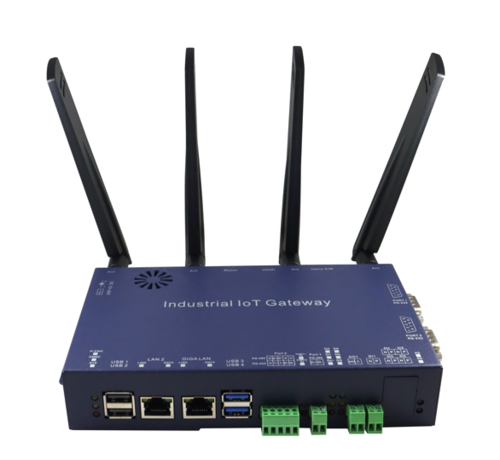

WEP-632-PI-CM4-5G

System

• CPU: Broadcom BCM2711 QuadCore Cortex A72 (ARM v8) 64 bits SoC @ 1.5G
• RAM: 1 / 2 / 4 / 8 G Bytes LPDDR4 SDRAM (optional)
• ROM: 8 / 16 / 32 G Bytes EMMC Flash Memory (optional)
• GPU: VideoCore VI (OpenGL ES 3.0, H.265 HEVC (4Kp60fps decode), H.264(1080p60fps decode)
• OS: Linux OS

Winbond W77Q Secure Flash Memory

• Secure Root of Trust (RoT) for IoT devices
• Secure code and data storage
• Local and remote secure-channel, encrypted, authenticated, replay-protected
• arget security certifications: Common Criteria EAL 2+, SESIP Level 2 (with IEC 62443, NIST 8259A, WP.29 ready), ISO 21434, FIPS PUB 180-4 (CMVP, CAVP) and safety qualification: ISO 26262 ASIL-C ready
• Speed 133MHz
• 128 Mbit Capacity

Connectivity

• Wireless
  Wifi 802.11b / g / n / ac /ax (2.4/5GHz) (optional)
  Bluetooth: 5.0 BLE (optional)
• 5G
  M.2 Key B USB 3.0 for 5G (optional)
  M.2 Key M PCI-E for Wifi 6 (optional)
• 4G
  Mini-PCIe : USB 2.0 for 4G / NB-IoT / LoRa (optional)
  Nano SIM Slot for 5G / 4G / NB-IoT
• Ethernet
  10/100/1000 Mbps Giga Lan * 1 (RJ45)
  10/100Mbps * 1 (RJ45)

Interface

• USB 3.0 * 2, USB 2.0 * 2
• I2C *1  (on PCB)
• SPI *1  (on PCB)
• PWM * 2 (on PCB)
• M.2 key M for PCIe SSD (optional)

Serial Port

• Port 1: RS-232/422/485 * 1
• Port 2: RS-232/485 * 1

Others

• RTC : Real Time Clock * 1 (with Battery)
• Buzzer * 1
• Watch Dog Timer
• Reset Button * 1
• MIPI CSI 2-lane * 1 (optional)
• Fan - DC 12V (optional)

Digital Input / Digital Output

• Digital Input * 1 Pin (Active High / Active Low Selectable)
• Dry contact : Logic level 0 : close to GND ,  Logic level 1 : open
• Wet contact :   Logic level 0 : 0 ~ 3 V,  Logic level 1 : 10 ~ 30 V
• Digital Output * 1 Pin (Active High / Active Low Selectable)
• 120VAC @0.5A, 240VAC @0.25A, 30VDC @1A

Video Output

• HDMI * 1 (4Kp 60fps with audio)

Mechanical & Environment

• Operating Temperature : - 20 ℃ ~ 75 ℃
• Storage Temperature : - 25 ℃ ~ 80 ℃
• Dimensions : 170 * 110 * 30 mm ( W * D * H )
• Weight : 950 gm
• Housing : Metal

Power

• DC 9 ~ 32V, 1000mA@12V (DC Jack or Terminal Input)

LED

• PI PWR / EMMC / Serial / DI / DO / SYS-Customer defined / 5G / 4G

Warranty

• Warranty period: 1 Year

Order Information

• WEP-632-PI-CM4-B ( for M.2 KEY B )
• WEP-632-PI-CM4-M ( for M.2 KEY M )

* Raspberry Pi is a trademark of the Raspberry Pi Foundation.
