WEP-632-DIO  |產品介紹|嵌入式設備|訊號轉換器/無線訊號轉換器/紀錄器/控制器

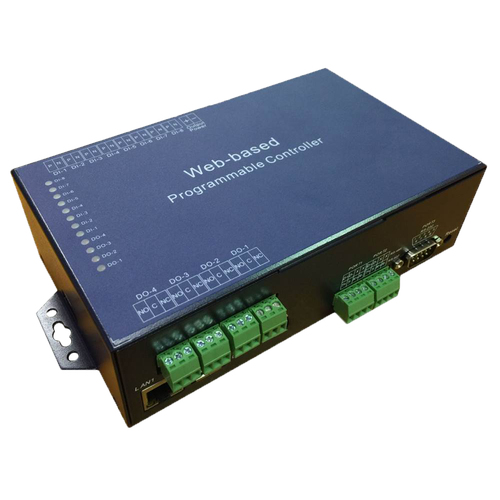

WEP-632-DIO


Raspberry Pi Inside!!
Web-based
Programmable Gateway

代碼 IDEC_DEMO2




Hardware

  • Kernel: Raspberry Pi 3 Model B inside
  • CPU : ARM-11 CPU , 1200 MHz
  • RAM : 512M Bytes SDRAM
  • ROM : 16 G Bytes Flash ROM ( Micro SD card )
  • OS: Raspbian Stretch V9.4

Ethernet

  • Port Type : RJ-45 Connector*2(Separate MAC Address)

Serial Port

  • Port : RS - 232 * 1 Ports
  • Port : RS - 422 / 485 * 2 Ports
  • Speed:300 bps ~ 230.4 K bps
  • Parity:None , Odd , Even , Mark , Space
  • Data Bit:5 , 6 , 7 , 8
  • Stop Bit : 1 , 2
  • RS-422 : Rx+ , Rx- , Tx+ , Tx- ( Surge Protect )
  • RS-485 : Data+ , Data- ( Surge Protect )
    ( Over current protect )
    15KV ESD for all signals
  • USB (Host * 3 port)
  • Buzzer * 1

Digital Input

  • Digital Input: 8 pin
  • DryContact as default (Wet Contact for customize)
  • Photo couple protect for all pins

Digital Onput

  • Digital Output: 4
  • Intenal Relay: 7A@240V,10A@120V
  • Normal open / Normal close selectable

Power

  • DC 9~24V , 2000mA

LED Lamp

  • SYS(PWR), LAN

Environment

  • Operating Temperature: 0~70
  • Storage Temperature: -10~80℃
Dimensions
  • 180 * 110 * 30 mm (W * D * H)
Weight
  • 350g​​​​​​​
Regulatory Approvals
  • CE / FCC
  • ROHS

Warranty

  • 1 year
