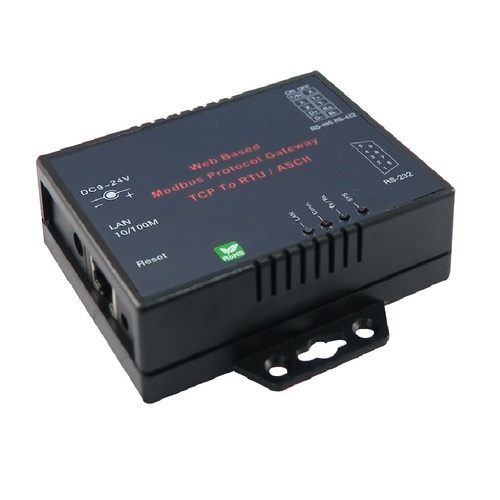

WEP-232 Modbus Gateway

Hardware

• CPU : 32-bits ARM7 Winbonds CPU , 80 MHz
• RAM : 8 M Bytes SDRAM
• ROM : 4 M Bytes Flash ROM
• OS :  uClinux OS

Ethernet

• Port Type : RJ-45 Connector
• Speed : 10 /100 M bps  ( Auto Detect )
• Software  : RTU Slave, RTU Master, ASCII Slave, ASCII Master
• Utility  :  Built-in Web server Setup, Easy Operation
• Master TCP : 8 simultaneous TCP Master, 32 simultaneous Request for each TCP Master
• Mode : TCP Server / TCP Client / UDP
• Setup : HTTP Browser Setup (IE & Netscape)

Console

• Security : Setup Password
• Protection : Built-in 1.5KV Magnetic Isolation

Serial Port

• Port : RS-232 * 1 Port or RS-422/RS-485 * 1 Port ( software select)
• Speed：300 bps ~ 230.4 K bps
• Parity：None , Odd , Even , Mark , Space
• Data Bit：5 , 6 , 7 , 8
• Stop Bit : 1 , 2
• RS-232 Pins : Rx , Tx , GND , RTS , CTS , DTR , DSR , DCD
• RS-422 : Rx+ , Rx- , Tx+ , Tx- (Surge Protect)
• RS-485 : Data+ , Data- (Surge Protect)
• Built –in RS-422/RS-485 Terminal Resistor
• 15KV ESD for all signals
• Watch Dog Function

Power

• DC 12 V , 1000 mA

Led Lamp

• SYS (PWR) , LAN , LED 1 , LED 2 ( User Define )

Environment

• Operating Temperature: 0℃〜70℃
• Storage Temperature : -10℃〜80℃

Dimensions

• 100 * 90 * 25 mm ( W * D * H )

Weight

•  140 gm
• Support DIN-Rail or Wall mount

Regulatory Approvals

• EMC :  FCC Class A, CE Class A

WARRANTY

• 1 year
