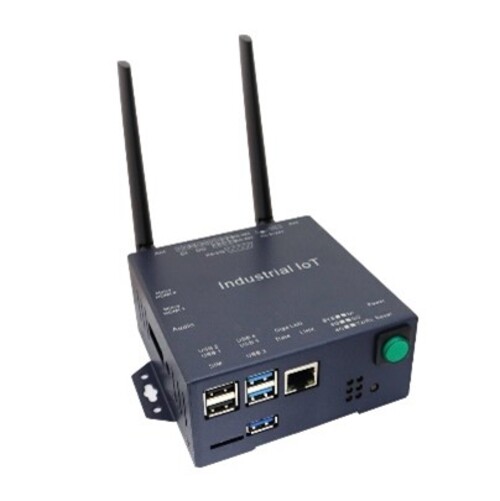

WEP-632-PI4-5G

System

• CPU: ARM v8 A72 Quad Core 64 bit SOC,1.5 GHz
• RAM: 2/4/8 G Bytes LPDDR4 SDRAM (option)
• ROM: 8/16/32 G Bytes (Micro SD Card)
• GPU: OpenGL ES 3.0 graphics
• OS: Linux OS

Connectivity

• Wireless
  Wifi 2.4GHz and 5GHz IEEE 802.11ac
  Bluetooth 5.0 BLE
• 5G
  M.2 To USB 3.0 Interface for 5G
• 4G
  Mini PCIe TO USB 2.0 for 4G/NB-IOT/Lora
• Ethernet
  10/100/1000 Mbps Giga Lan * 1 (RJ45)

Serial Port

• RS-232 / 485 / 422 ( RS-485/422 Surge Protect )

Interface

• USB 3.0 *2, USB 2.0 *2
• I2C *1 (build-in)
• SPI *1 (on pcb)

Others

• SIM Slot for 4G / 5G
• SD Interface: Micro SD Card (8/16/32 G OS & Storage)
• RTC: Real Time Clock * 1 (With Battery)
• Watch Dog Function
• Console Port * 1 (RS-232)

Video Output

• Micro HDMI * 2
  H.265 (4Kp60 decode)
  H.264 (1080p60 decode, 1080p30 encode)

Mechanical & Environment

• Operating Temperature: -10℃ ~ 65℃
• Storage Temperature: -15℃ ~ 70℃
• Dimensions: 130 * 110 * 45 mm (W * D * H)
• Weight: 550 gm
• Housing: Metal

Power

• DC 9 ~ 32 V, 1000mA, 500mA@12V, DC Jack or Terminal Input

LED

• SYS (PWR),5G,4GSerial

Warranty

• Warranty period: 1 year
