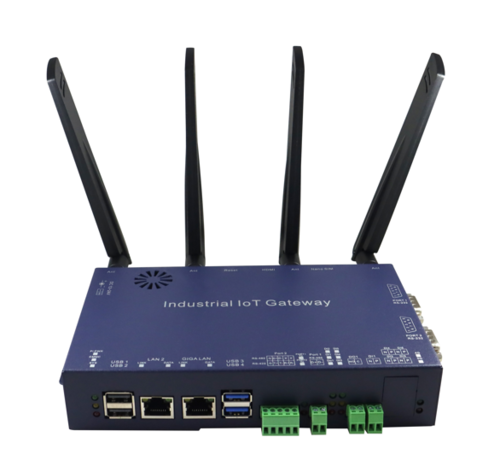

5G VPN Router

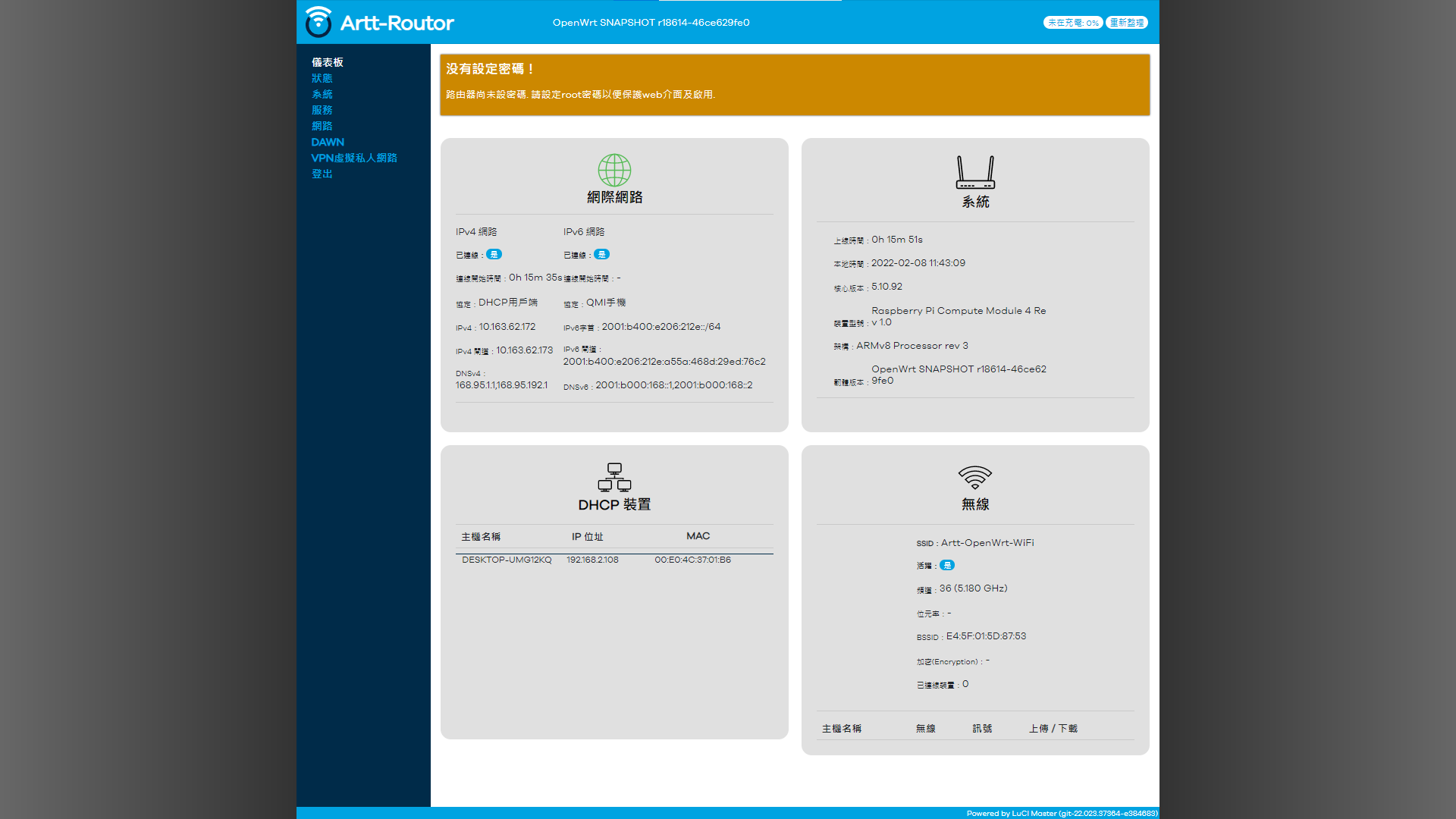

提供網頁式操作介面，方便檢視設備狀態

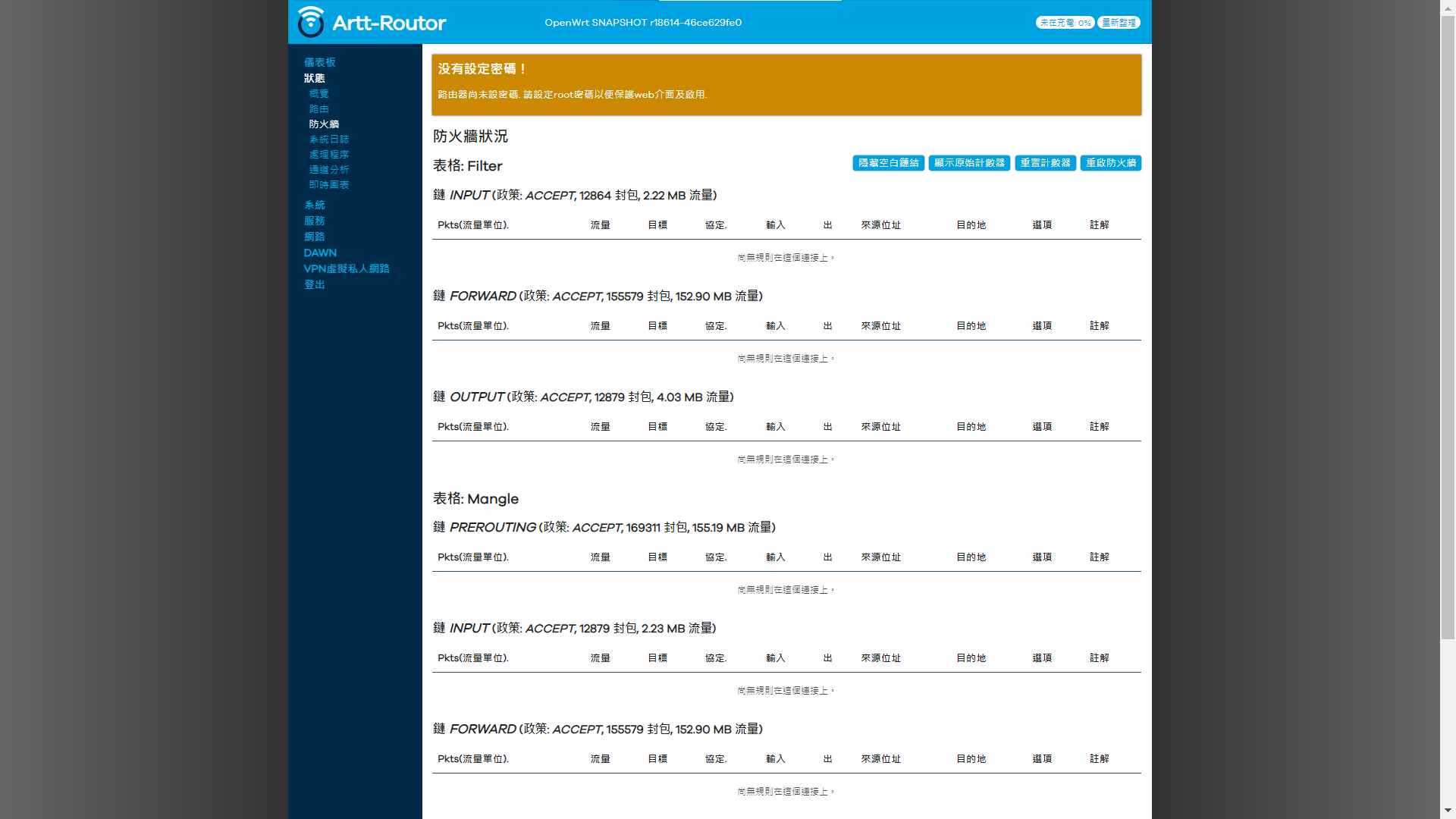

內建防火牆可自定義規則、轉發

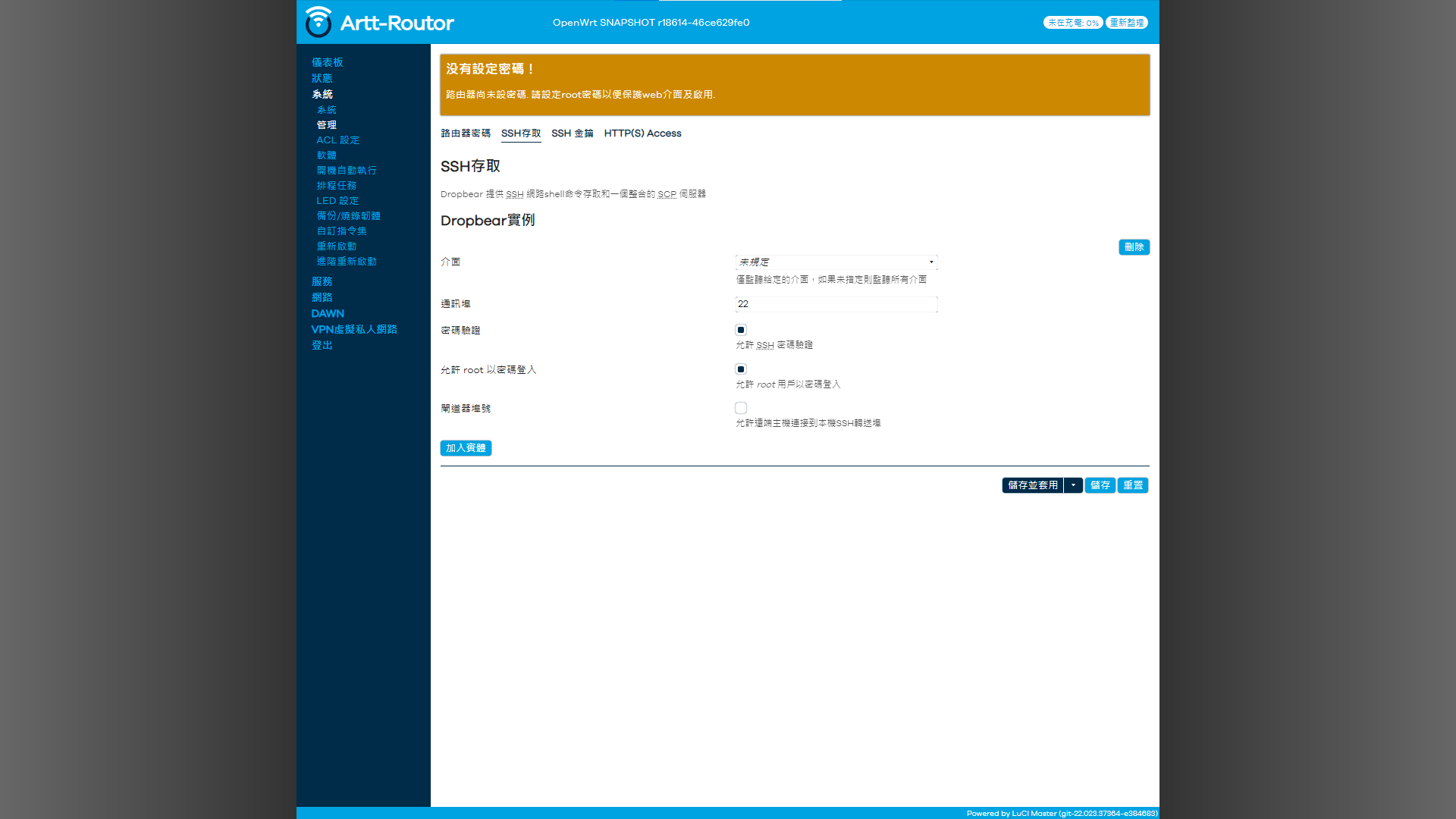

提供SSH存取

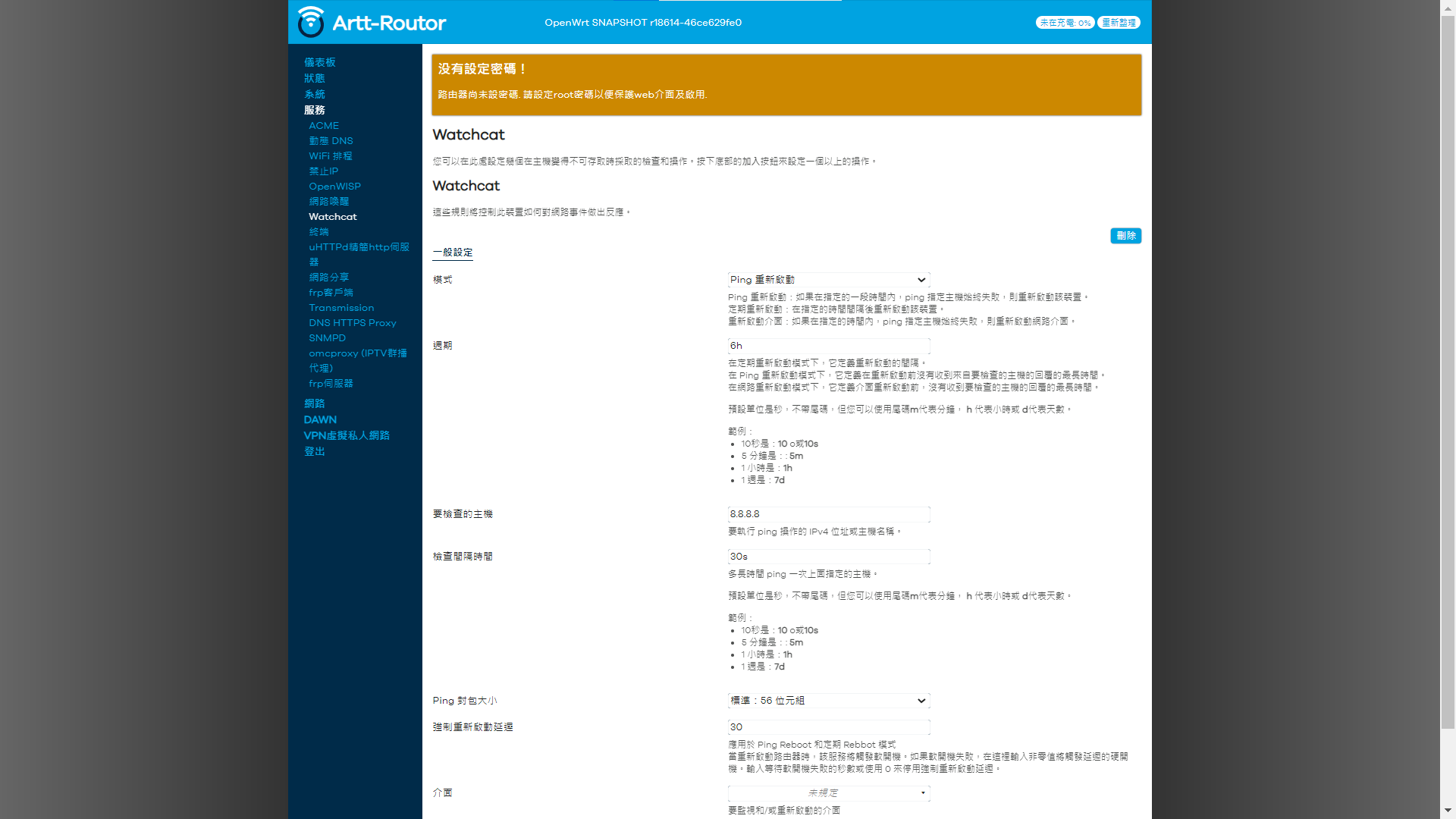

內含Watchcat，可自訂條件進行設備重啟

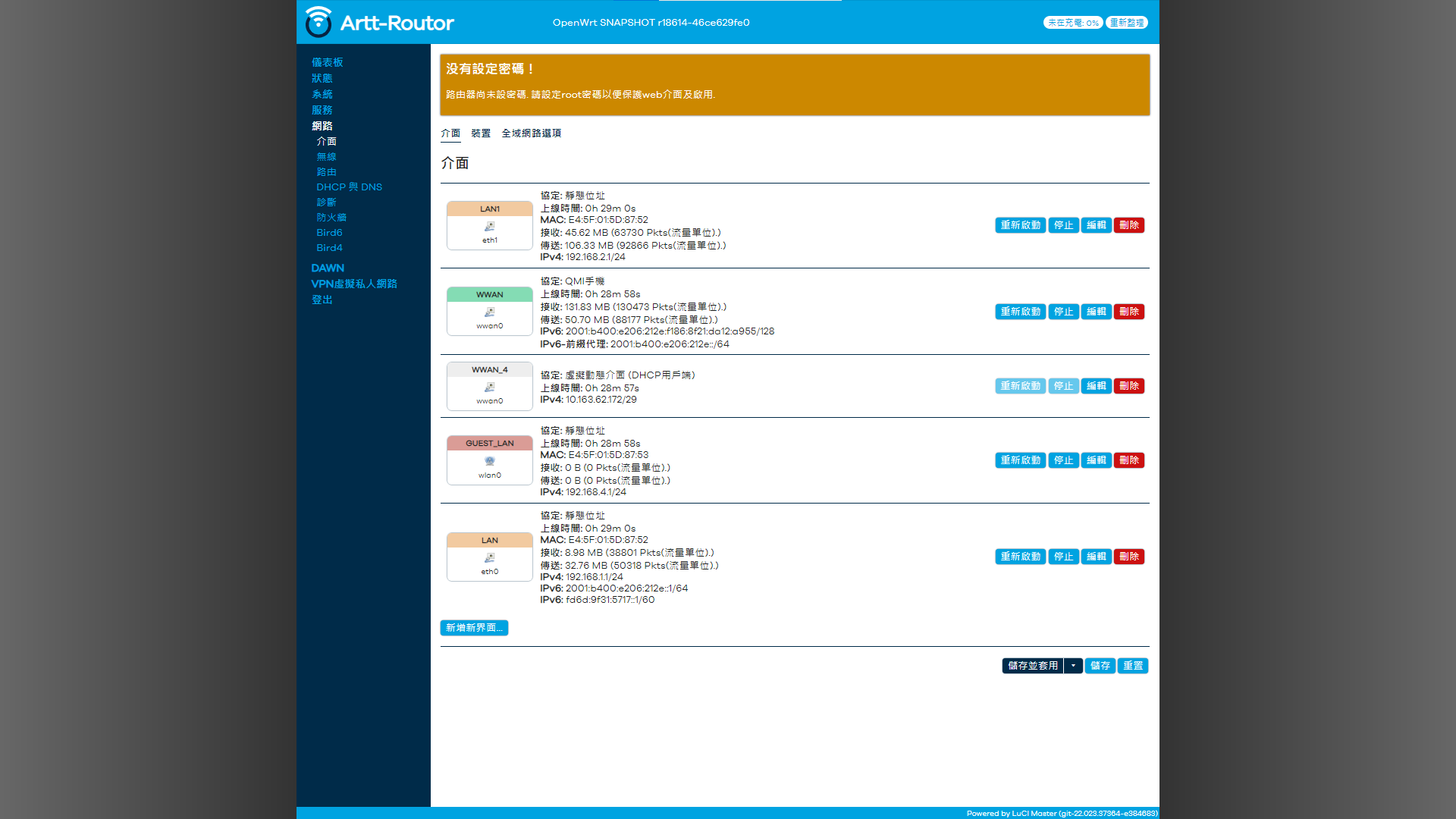

圖形化介面，簡單方便管理各端口

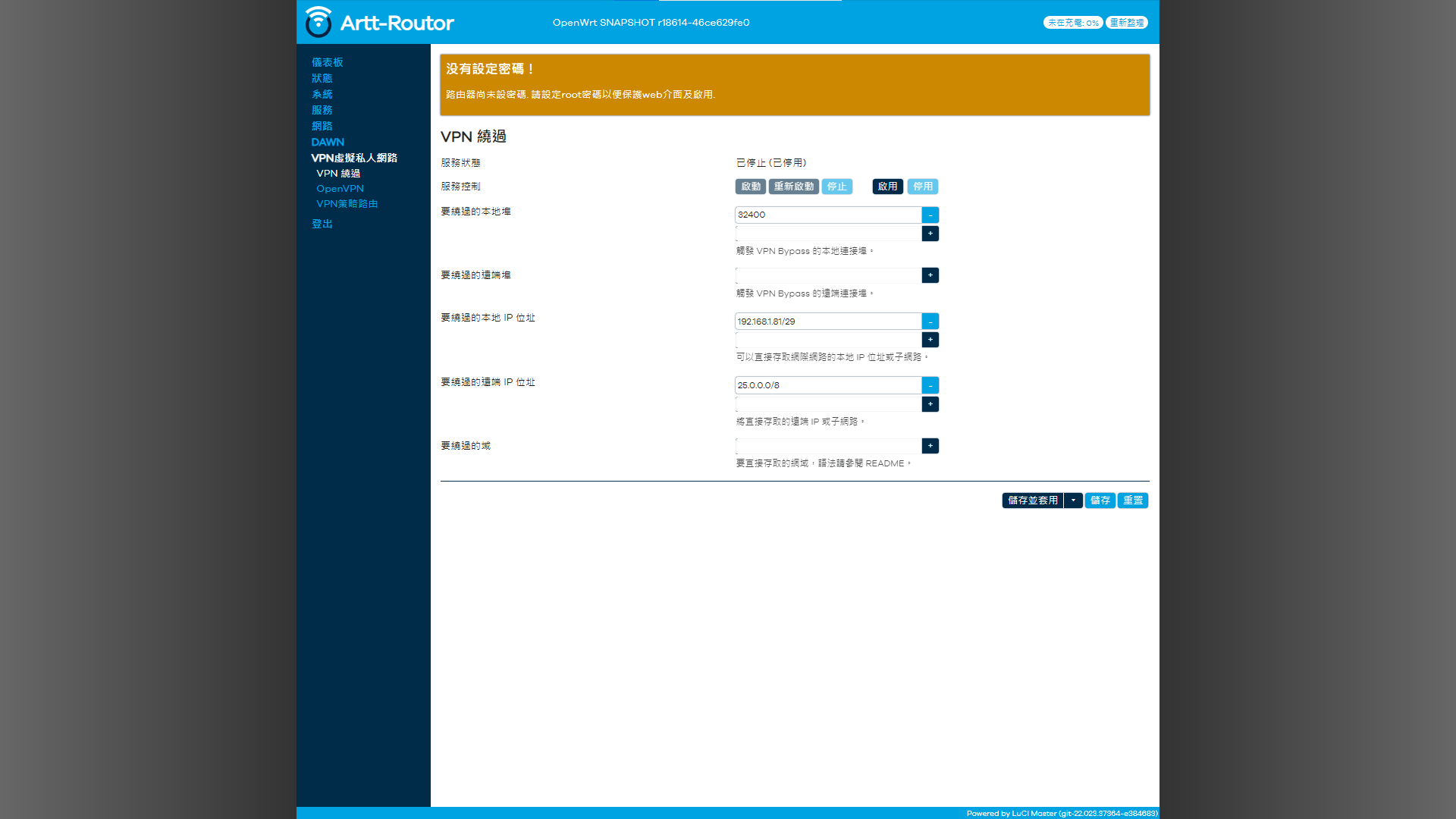

內含VPN功能

Hardware

CPU : Broadcom BCM2711 QuadCore Cortex A72 (ARM v8) 64 bits SoC @ 1.5G
RAM : 1 / 2 / 4 / 8 G Bytes LPDDR4 SDRAM (optional)
ROM : 8 / 16 / 32 G B ytes EMMC Flash Memory (optional)
GPU : VideoCore VI (OpenGL ES 3.0, H.265 HEVC (4Kp60fps decode), H.26 4 (1080p60fps)
OS : Linux OS

Winbond W77Q Secure Flash Memory

◎ Secure Root of Trust (RoT) for IoT devices
◎ Secure code and data storage
◎ Local and remote secure-channel, encrypted, authenticated, replay-protected
◎ arget security certifications: Common Criteria EAL 2+, SESIP Level 2 (with IEC 62443, NIST 8259A, WP.29 ready), ISO 21434, FIPS PUB 180-4 (CMVP, CAVP) and safety qualification: ISO 26262 ASIL-C ready
◎ Speed 133MHz
◎ 128 Mbit Capacity

Connectivity

Wireless : Wifi 802.11 b / g / n / ac / ax (2.4/5GHz) (optional)、Bluetooth 5.0 BLE (optional)
5G : M.2 key B USB 3.0 / PCIE for 5G (optional)
4G : Mini PCIe : USB 2.0 for 4G / NB IoT / LoRa (optional)、Nano SIM Slot for 5G / 4G / NB IoT
Ethernet : 10/100/1000 Mbps Giga Lan * 1 (RJ45)、10/100Mbps * 1 (RJ45)

Interface

USB 3.0 * 2、 USB 2.0 * 2
I2C * 1 (on PCB)
SPI * 1 (on PCB)
PWM * 2 (on PCB)
M.2 key M for PCIe SSD (optional) / wifi 6 (optional)(need E Key to M Key Adapter)

Serial

Port 1 : RS-232 / 422 / 485 * 1
Port 2 : RS-232 / 485 * 1

Other

RTC : Real Time Clock 1 (with Battery)
Buzzer * 1
Watch Dog Timer
Reset Button * 1
MIPI CSI 2 lane * 1 optional
Fan - DC 12V (optional)

Digital Input / Digital Output

Digital Input * 1 Pin (Active High / Active Low Selectable)
Dry contact : Logic level 0 : close to GND
Logic level 1 : open
Wet contact :
Logic level 0 : 0 ~ 3 V,
Logic level 1 : 10 ~ 30 V
Digital Output * 1 Pin (Active High / Active Low Selectable)
120VAC @0.5A, 240VAC @0.25A, 30VDC @1A

Video Output

Micro HDMI * 1 (4Kp60fps with audio)

Mechical & Environment

Operating Temperature : 20 ℃℃~ 75
Storage Temperature : 25 ℃℃~ 80
Dimensions : 170 * 110 * 30 mm ( W * D * H )
Weight : 950 gm
Housing : Metal.

Power

DC 9~32V,1000mA@12V (DC Jack or Terminal Input)

LED

PI PWR / EMMC / Serial / DI / DO / SYS Customer defined / 5G / 4G

Warranty

Warranty period : 1 year
