WEP-832  |產品介紹|嵌入式設備|訊號轉換器/無線訊號轉換器/紀錄器/控制器

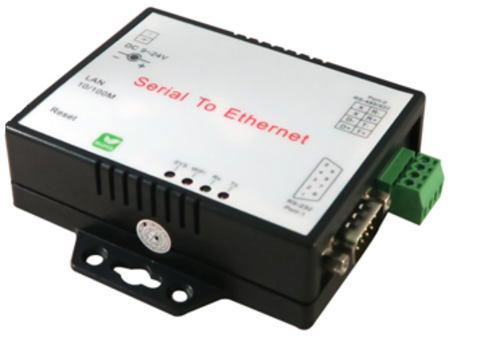

WEP-832


As a Server support 4 TCP clients connection
As a Client support 4 TCP server connection
Open WRT Linux
Supports Ethernet, Two Ips, 10/100 Mbps

代碼 WEP-832




System

  • CPU: MT7688AN MIPS CPU , 580 MHz
  • RAM: 128M Bytes DDR2 RAM
  • ROM: 32M Bytes Flash ROM
  • OS: Open Wrt Linux OS

Ethernet

  • Port Type: RJ-45 Connector
  • Speed: 10 /100 M bps ( Auto Detecting )
  • Protection: Built-in 1.5KV Magnetic Isolation

Serial Ports * 2 (Optional)

  • Port: RS - 232 (RS-232 RX/TX only)
  • Speed: 300 bps ~ 921.6 K bps
  • Parity: None , Odd , Even
  • Data Bit: 5 , 6 , 7 , 8
  • Stop Bit: 1 , 2
  • PS-232 Pins: Rx , Tx , GND
  • RS-422: Rx+ , Rx- , Tx+ , Tx- ( Surge Protect )
  • RS-485: Data+ , Data- ( Surge Protect )
  • 15KV ESD for all signalsPort : RS - 422 / 485 ( Surge Protect )

Other Features

  • Lamp: SYS, PWR, RX, TX, LAN
  • Watch Dog Function
  • Storage Temperature: -25℃~80℃
  • Dimensions: 110 * 90 * 26 mm ( W * D * H )
  • Weight: 150 ± 10gm
  • Housing: metal or plastic

Power

  • DC 9~32V, 1000mA@12V, DC Jack & Terminal Input

Mechanical & Environment

  • Operating Temperature : -20℃~70℃

Warranty

  • Warranty period: 1 year
