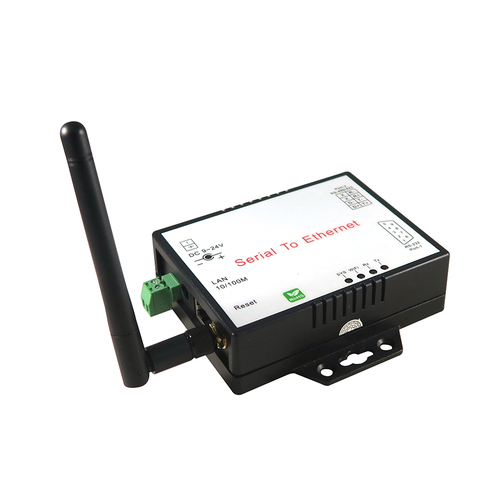

WEP-832-2-E-MQTT

System

• CPU : MT7688AN MIPS CPU , 580 MHz
• RAM : 128M Bytes DDR2 RAM
• ROM : 32M Bytes Flash ROM
• OS :  Open Wrt Linux OS

Ethernet

• Port Type : RJ-45 Connector
• Speed : 10 /100 M bps  ( Auto Detecting )
• Protocol : ARP , IP , ICMP , UDP , TCP , HTTP , DHCP
• Protocol : DNS , NTP
• Mode : TCP Server / TCP Client / UDP
• Setup : HTTP Browser Setup (IE & Netscape) ,  Console
• Security : Login / Password
• Protection : Built-in 1.5KV Magnetic Isolation

Wifi

• Standard : 802.11b/g/n
• Data Rate :11/54/72.2 Mbps @ 20Mhz Band Width
• Modulation : DSSS; OFDM
• Frequency : 2.4GHz
• Tx Power 11b : Max. 22dBm
• Tx Power 11g/n : Max. 19dBm
• Rx Sensitivity : -76dBm@54Mbps; -89.5dBm@11Mbps
• Tx Rate : Max. 54Mbps with auto fallback
• Tx Distance : Up to 100m
• Security : WEP 64-bit / 128-bit data encryption, WPA / WPA2
• Antenna : 2 dBi ; RP-SMA connector
• Network Mode: Infrastructure; Soft AP (for Setup)
• Mode : TCP Server/ TCP Client/ UDP/ Virtual Com/ Pairing
• Setup : HTTP Browser Setup (IE, Chrome, Firefox)
• Security : Login / Password

Serial Ports * 2

• Port : RS - 232 (RS-232 RX/TX only)
• Port : RS - 422 / 485 ( Surge Protect )
• Speed: 300 bps ~ 921.6 K bps
• Parity: None , Odd , Even
• Data Bit: 5 , 6 , 7 , 8
• Stop Bit : 1 , 2
• RS-232 Pins : Rx , Tx , GND
• RS-422 : Rx+ , Rx- , Tx+ , Tx- ( Surge Protect )
• RS-485 : Data+ , Data- ( Surge Protect )
• 15KV ESD for all signals

Other Features

• Led Lamp : SYS, PWR, PoE(option), WiFi, RX, TX, LAN
• Watch Dog Function

Power

• DC 9V~32V, 100mA@12V, Support DC Jack & Terminal Input

Mechanical & Environment

• Operating Temperature : -20℃〜70℃
• Storage Temperature: -25℃〜80℃
• Dimensions : 110 * 90 * 26 mm ( W * D * H )
• Weight : 110 ± 5gm
• Housing: plastic

Warranty

• Warranty period: 1 year
