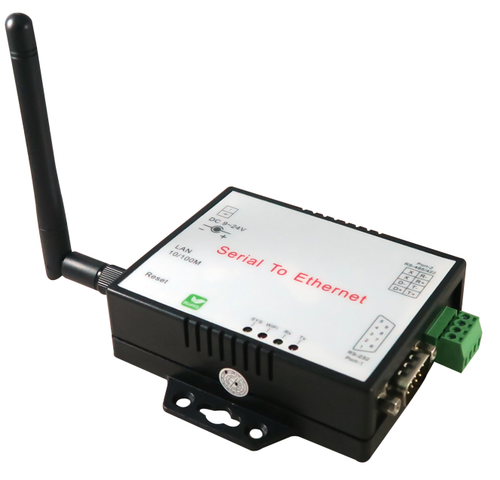

WEP-832-WL

System

• CPU: MT7688AN MIPS CPU 580MHz
• RAM: 128M Bytes DDR2 RAM
• ROM: 32M Bytes Flash ROM
• OS : Open Wrt Linux OS

Ethernet

• Port Type: RJ-45 Connector
• Speed: 10 /100 M bps  ( Auto Detecting )
• Protection: Built-in 1.5KV Magnetic Isolation

Serial Port * 2 (Optional)

• Port : RS - 232 (RS-232 RX/TX only)
• Speed: 300 bps ~ 921.6 K bps
• Parity: None , Odd , Even
• Data Bit: 5 , 6 , 7 , 8
• Stop Bit : 1 , 2
• RS-232 Pins : Rx , Tx , GND
• RS-422 : Rx+ , Rx- , Tx+ , Tx- ( Surge Protect )
• RS-485 : Data+ , Data- ( Surge Protect )
• 15KV ESD for all signalsPort : RS - 422 / 485 ( Surge Protect )

Wifi

• Standard : 802.11b/g/n
• Data Rate :11/54/72.2 Mbps @ 20Mhz Band Width
• Modulation : DSSS; OFDM
• Frequency : 2.4GHz
• Tx Power 11b : Max. 22dBm
• Tx Power 11g/n : Max. 19dBm
• Rx Sensitivity : -76dBm@54Mbps; -89.5dBm@11Mbps
• Tx Rate : Max. 54Mbps with auto fallback
• Tx Distance : Up to 100m
• Security : WEP 64-bit / 128-bit data encryption, WPA / WPA2
• Antenna : 2 dBi ; RP-SMA connector
• Network Mode: Infrastructure; Soft AP (for Setup)

Other Features

• Led Lamp : SYS, PWR, PoE(option), WiFi, RX, TX, LAN
• Watch Dog Function
• Storage Temperature: -25℃~80℃
• Dimensions: 110 * 90 * 26 mm
• Weight: 110 ± 5gm
• Housing: plastic

Power

• DC 9~32V, 1000mA@12V, DC Jack & Terminal Input

Mechanical & Environment

• Operating Temperature : -20℃~70℃

Warranty

• Warranty period : 1 year
