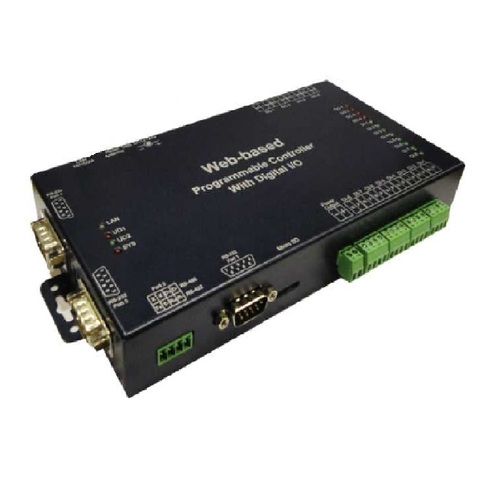

WEP332-DIO (Modbus, ethernet, com, 4DO8DI)


 Modbus TCP Slave
 Modbus RTU Slave
 Web Setup
 Web-based Control Digital I/O
 4DO 8DI
 Relay build inside

代碼 WEP332-DIO




Hardware

  • CPU: ARM 32-bit CPU
  • RAM: 16M bytes SDRAM
  • ROM: 8M bytes Flash ROM

Ethernet

  • Port Type: RJ-45 Connector
  • Speed: 10 / 100 Mbps ( Auto Detection )
  • Setup: HTTP Browser Setup ( IE & Chrome ), Console
  • Security: Setup Password
  • Protection: Built-in 1.5KV Magnetic Isolation

Serial Port

  • Port: RS-232 *3
  • Port: RS-422 / 485 *1
  • Speed: 300 bps ~ 230.4K bps
  • Parity: None, Odd, Even, Mark, Space
  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 2
  • RS-232: Rx, Tx, GND, RTS, CTS, DTR, DSR, DCD
  • RS-422: Rx+, Rx-, Tx+, Tx- ( Surge & Over Current protection )
  • RS-485: Data+, Data- ( Surge & Over Current protection ) 15KV ESD for all signals

Digital Input / Output

  • Digital Input * 8 Pins (3 KV optical isolation, Max DC 24V)
  • Dry Contact / Wet Contact
  • Relay:10A@120V AC/7A@240V AC/10A@24V DC
  • Type: SPDT, NO/NC/COM
  • Digital Output * 4 Pins ( Active High / Active Low Selectable)
  • USB ( Host * 1 Port ) For Memory Storage
  • SD Interface micro SD card ( Max 16G storage )
  • RTC Real Time Clock * 1
  • Buzzer * 1
  • Watch Dog Function

Power

  • DC 12 ~ 30 V, 1000 mA
  • 1000mA @ 12V DC

LED Indicators

  • SYS ( PWR ), LAN, LED 1, LED 2

Environment

  • Operating Temperature:0 ~ +70℃
  • Storage Temperature:-10 ~ +80℃

Dimenssions

  • 215 * 120 * 30 mm ( W * D * H )

Weight

  • 650g

Warrenty

  • 1 year
